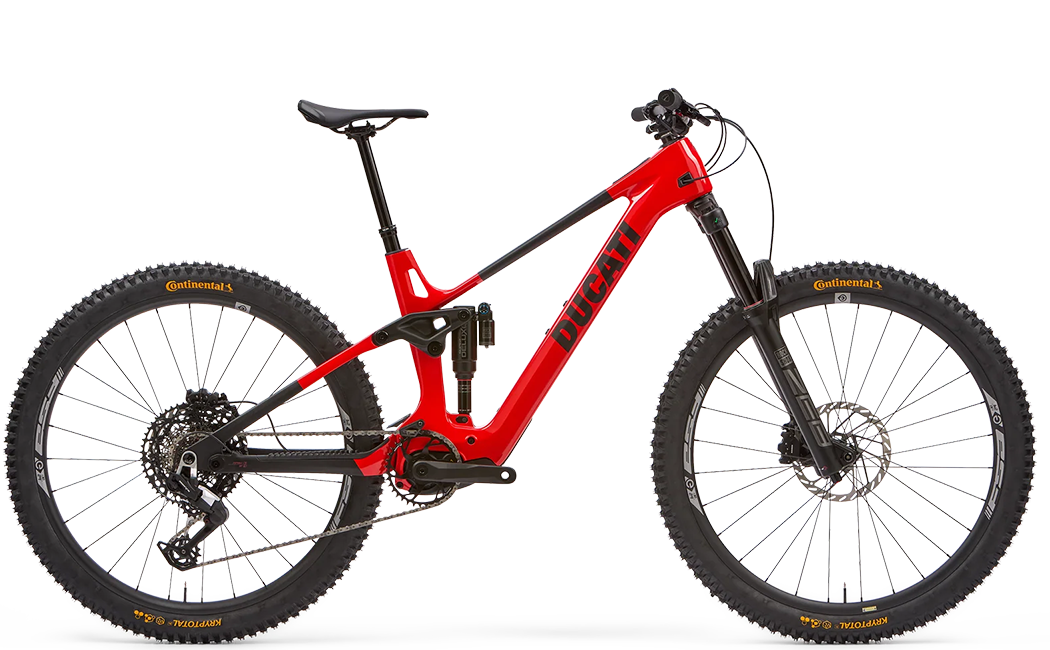

Ducati DM-160 R
Ducati DM-160 R brings Ducati's racing DNA to the most technical trails with a UD carbon fibre frame, Avinox M2 motor and integrated 800Wh battery. Adjustable geometry with flip chip system and 160 mm travel to dominate every enduro track.
Ducati DM-160 R

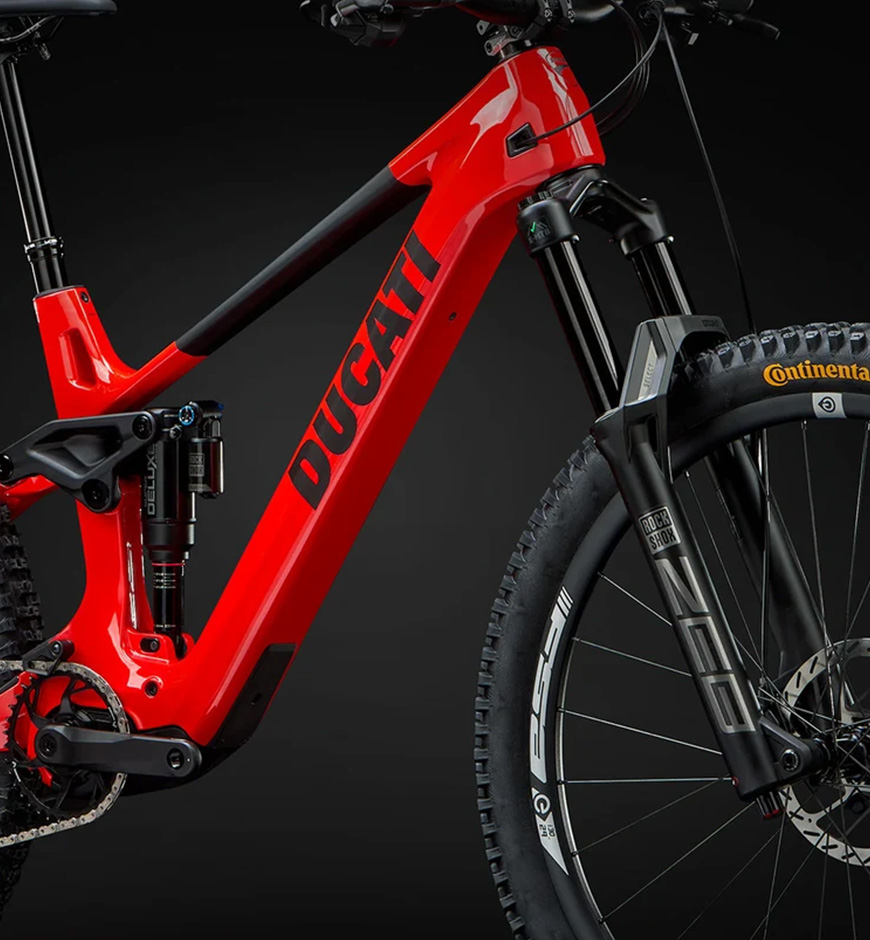

UD carbon fibre frame with adjustable geometry via flip chip to adapt to any terrain. The Avinox M2 motor combined with the integrated 800Wh battery delivers range and power in every condition. The RockShox Zeb Select 160 mm fork and RockShox Super Deluxe Select+ rear shock provide smooth and precise progression on the most demanding trails. SRAM Maven Base brakes with 200 mm rotors ensure powerful and modular braking in every situation.

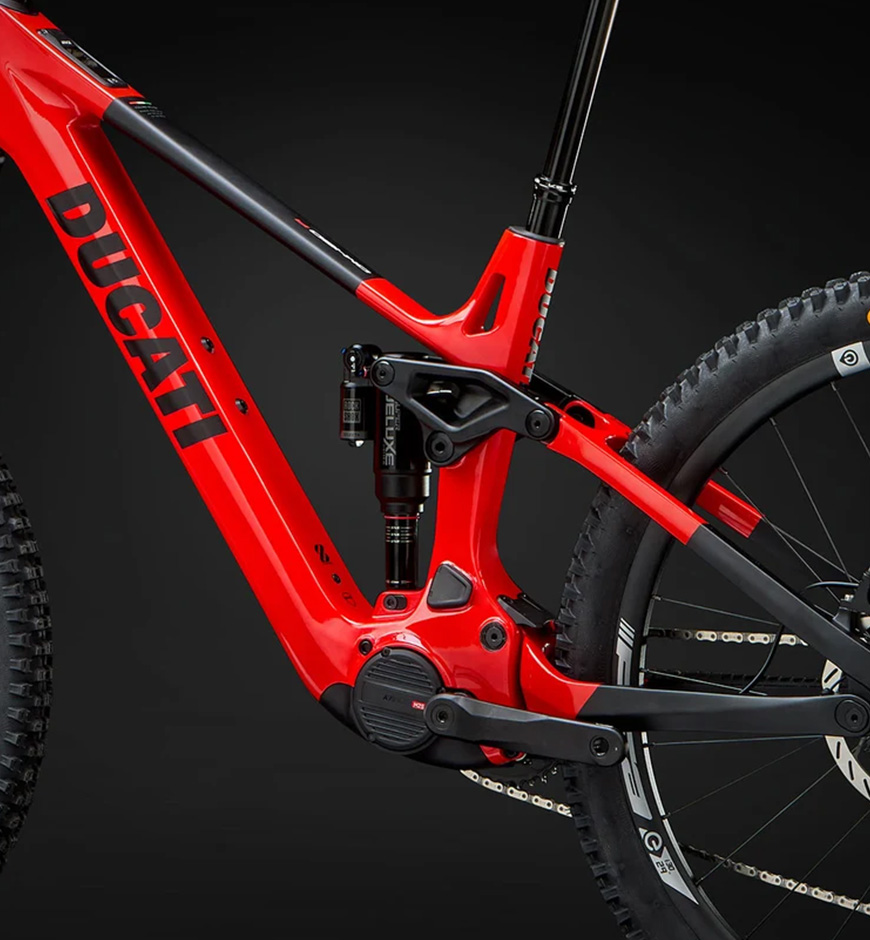

High-end RockShox suspension
The 160 mm ZEB Select, with its 38 mm chassis, delivers high stiffness and precision, while the DebonAir+ air spring and Charger RC damper provide sensitivity, support and effective adjustability. At the rear, the Super Deluxe Select+ shock (205x60) combines a DebonAir+ air spring with compression and rebound adjustments, making it easy to fine-tune the bike’s behaviour. The Open / Threshold lever allows the rider to switch from maximum sensitivity to a firmer, more efficient pedalling mode without fully locking out the suspension.
Avinox M2S Drive System with 800 Wh battery
A drive system that sets a new benchmark in the full-power segment, combining outstanding performance figures with a high level of integration. The motor delivers up to 1300 W of peak power and up to 130 Nm of torque, rising to 150 Nm in Boost mode, providing powerful yet consistently smooth and controlled assistance — ideal for tackling even the most demanding climbs with confidence. The system integrates high-precision sensors and advanced firmware, including a self-adaptive assistance mode that automatically optimises power delivery according to pedalling input and terrain. The experience is completed by advanced connectivity with GPS and eSIM, integrated anti-theft security features and a touchscreen display seamlessly integrated into the frame. The integrated 800 Wh battery provides extended range for long days in the mountains.

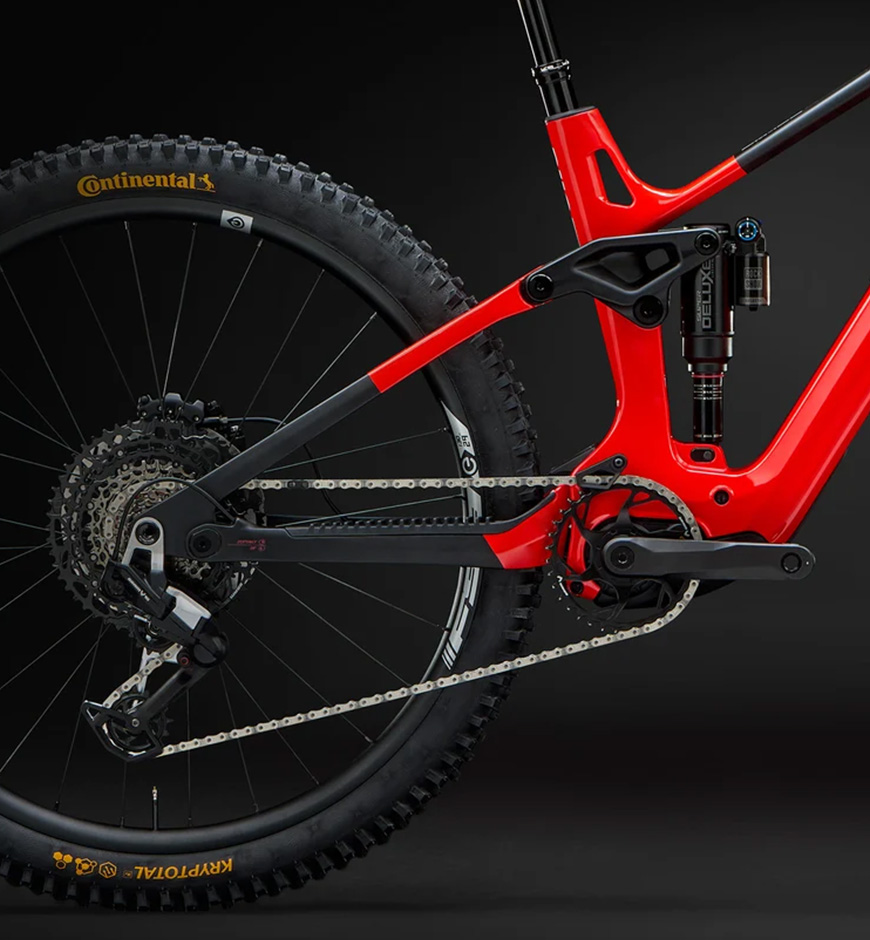

SRAM Eagle 90 rear derailleur
The 1x12 rear derailleur delivers precise and consistent shifting even under load thanks to the new T-Type Actuation, developed specifically for Eagle Transmission drivetrains. The hangerless Full Mount design increases stiffness and impact resistance while improving alignment and long-term reliability. Its fully rebuildable construction features replaceable components for enhanced durability. A solution engineered to deliver precision, robustness and reliable shifting in every condition, even under full load.

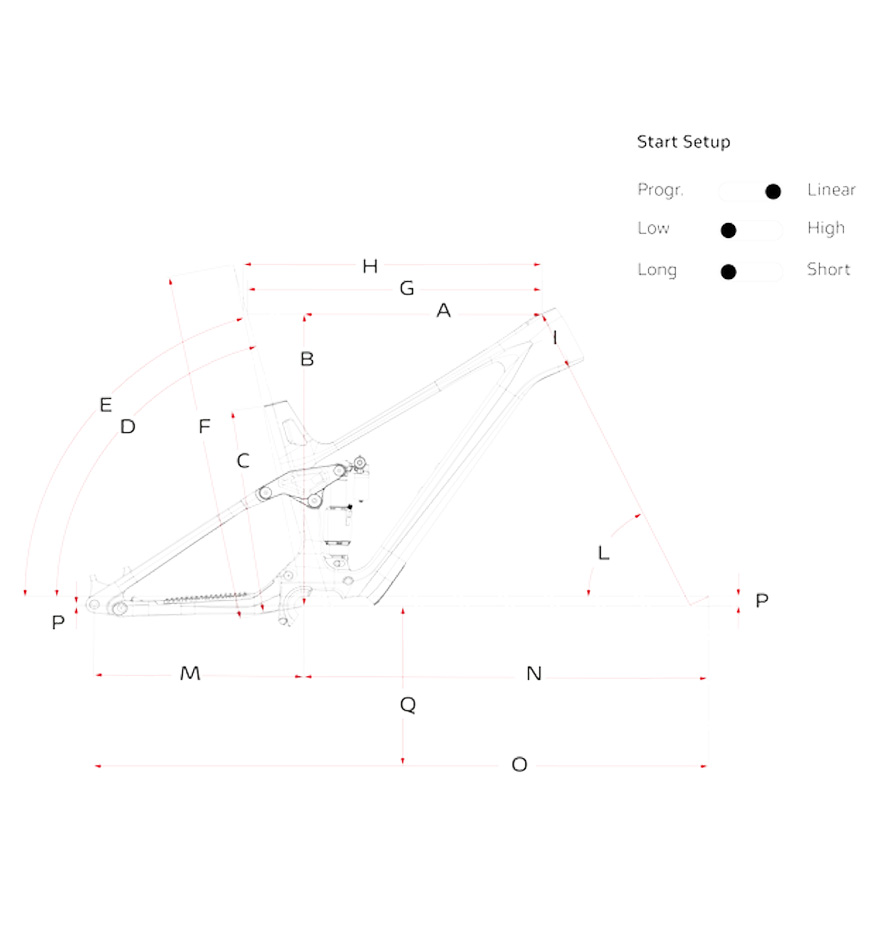

| Size | S1 | S2 | S3 |
|---|---|---|---|
| Reach (A) | 455 | 477 | 504 |
| Stack (B) | 618 | 631 | 643 |
| Seat Tube (C) | 390 | 420 | 450 |
| Effective Seat Tube Angle (D) | 73.4° | 74° | 74.8° |
| Virtual Seat Tube Angle (E) | 78.2° | 78.5° | 78.8° |
| Saddle Height For Virtual Seat Tube Angle (F) | 684 | 726 | 770 |
| Effective Top Tube (G) | 577 | 598 | 624 |
| Virtual Top Tube (H) | 582 | 605 | 632 |
| Head Tube (I) | 100 | 115 | 130 |
| Head Tube Angle (L) | 64° | 64° | 64° |
| Chain Stay (M) | 449 | 449 | 454 |
| Front to Center (N) | 792 | 820 | 855 |
| Wheelbase (O) | 1240 | 1269 | 1308 |
| BB Drop Front/Rear (P) | 27 | 27 | 27 |
| Estimated BB Height (Q) | 348 | 348 | 348 |
| Trail (R) | 0 | 0 | 0 |
| Fork Length (S) | 0 | 0 | 0 |
| Rake (T) | 0 | 0 | 0 |
