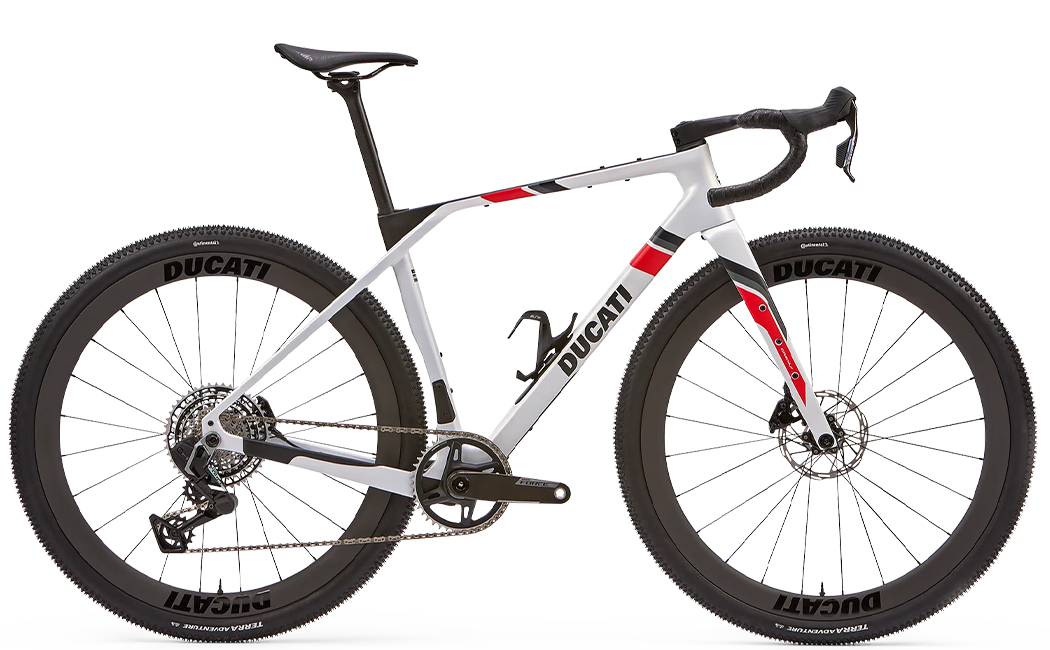

Ducati GRAVIAX R
Ducati GraviaX R brings Ducati racing DNA to gravel riding through a Made in Italy monocoque carbon fibre frame. With a Rake 57mm fork geometry (XS/S/M) and Rake 51mm (L/XL), SRAM FORCE XPLR AXS electronic groupset and Ducati Carbon G-Line wheels, it delivers precision and versatility on every terrain.
Ducati GraviaX R

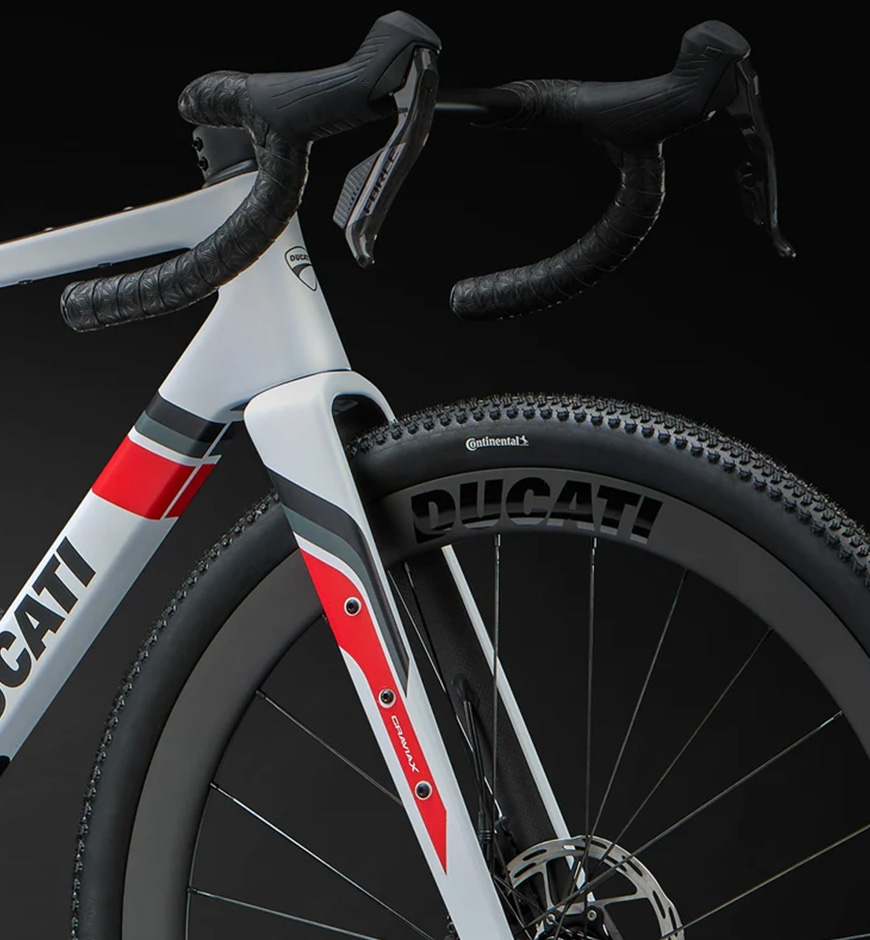

Made in Italy monocoque carbon fibre frame engineered for an optimal weight-to-stiffness ratio and high efficiency across mixed terrain. Gravel-specific geometry with Rake 57mm fork (XS/S/M) and Rake 51mm (L/XL) ensures confident handling on unpaved roads. The SRAM FORCE XPLR AXS E1 13-speed electronic groupset delivers ultra-precise, wireless shifting, while Ducati Carbon G-Line wheels with 42mm profile and 25mm internal channel provide the ideal balance of aerodynamics and traction. Continental Terra Adventure 45mm tyres offer grip and comfort on both gravel and asphalt.

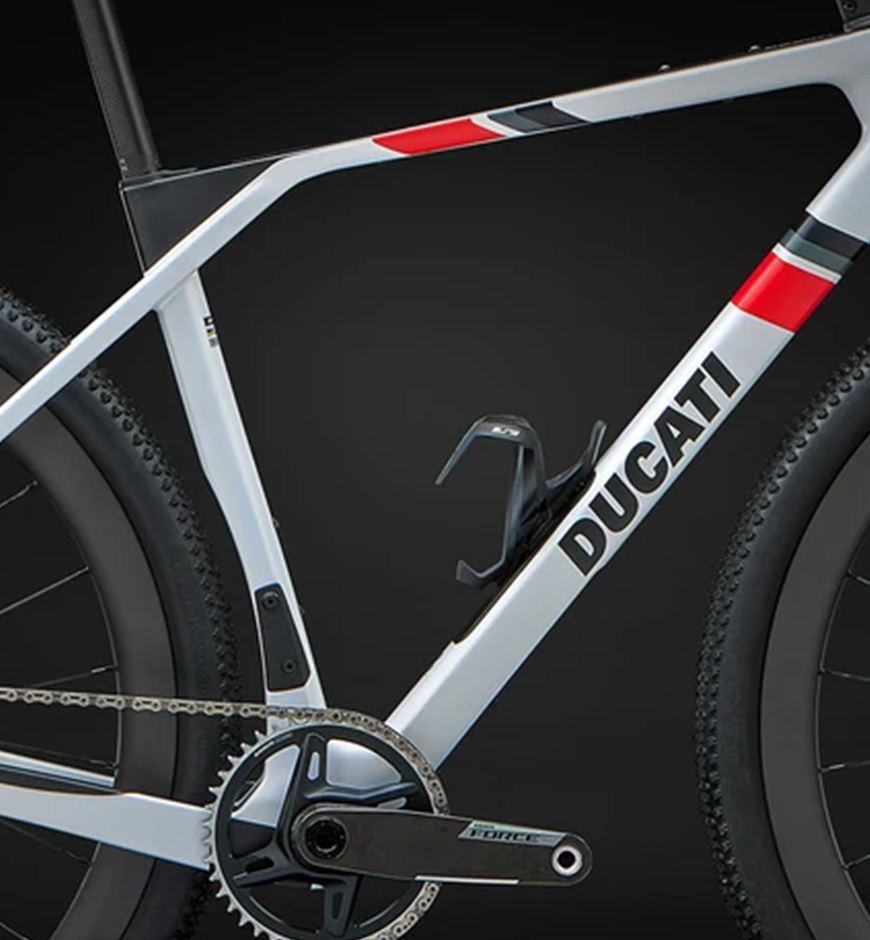

Made in Italy monocoque frame
Made in Italy carbon fibre monocoque frame, engineered to achieve the perfect balance of performance, comfort and versatility. Manufactured using single-mould technology and a dedicated lay-up of high-performance fibres, it delivers a seamless, uniform structure designed to maximise torsional stiffness and steering precision while maintaining effective vibration damping. The result is a race-oriented gravel bike built to provide control, efficiency and responsiveness on both tarmac and the most demanding off-road terrain.
Race-oriented geometry
The geometry has been developed to deliver the ideal balance of performance, control and long-distance comfort. A stack-to-reach ratio of 1.46 in size M provides an efficient, sporty riding position without being overly aggressive, while the balanced weight distribution between the front and rear enhances stability and confidence across all types of terrain. The forward-positioned seat tube axis optimises pedalling efficiency and allows tyres up to 50 mm wide to be fitted while maintaining a compact 427 mm rear triangle, improving responsiveness and handling dynamics. At the front, a 71° head angle and 64 mm trail provide precision, stability and control at high speeds and over rough surfaces. The fork features size-specific rake to preserve consistent handling characteristics across the range, ensuring a natural, balanced and predictable ride in every configuration.
Performance and versatility
The GraviaX is not only about performance, it is also a platform designed to deliver maximum versatility. The frame is compatible with the main modern groupsets and accommodates tyres up to 50 mm with a 1x drivetrain and up to 45 mm with a 2x setup, offering a wide range of component customisation options.The generous tyre clearances improve comfort and traction on gravel and mixed terrain while maintaining a high level of safety. An optional seatpost with 18 mm setback allows for a more relaxed riding position, increasing comfort over long distances. The integrated frame tool storage and mounting points for bikepacking bags and accessories further expand its versatility, enabling adventure use without compromising its clean aesthetics or functionality.
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Reach (A) | 372 | 378 | 390 | 408 | 413 |
| Stack (B) | 527 | 556 | 571 | 593 | 619 |
| Seat Tube (C) | 430 | 455 | 476 | 510 | 545 |
| Effective Seat Tube Angle (D) | 0 | 0 | 0 | 0 | 0 |
| Virtual Seat Tube Angle (E) | 74.7° | 74° | 73.7° | 73.4° | 73° |
| Saddle Height For Virtual Seat Tube Angle (F) | 0 | 0 | 0 | 0 | 0 |
| Effective Top Tube (G) | 0 | 0 | 0 | 0 | 0 |
| Virtual Top Tube (H) | 522 | 537 | 557 | 585 | 602.5 |
| Head Tube (I) | 101 | 122 | 137 | 158 | 185 |
| Head Tube Angle (L) | 71° | 71° | 71° | 72° | 72° |
| Chain Stay (M) | 427 | 427 | 427 | 427 | 427 |
| Front to Center (N) | 595 | 608 | 627 | 634.5 | 648 |
| Wheelbase (O) | 1010.5 | 1023 | 1042 | 1050.5 | 1064 |
| BB Drop Front/Rear (P) | 77 | 77 | 77 | 75 | 75 |
| Estimated BB Height (Q) | 285 | 285 | 285 | 287 | 287 |
| Trail (R) | 64 | 64 | 64 | 63 | 63 |
| Fork Length (S) | 403 | 403 | 403 | 403 | 403 |
| Rake (T) | 57 | 57 | 57 | 51 | 51 |
